EDGE MINI Direct
The EDGE MINI Direct (EX12D) offers sleek design and high performance, with every detail—from the mounting hardware to the compact 1.8" x 2.3" housing—designed for a minimalist aesthetic. Its integral driver simplifies both specification and installation.
Available in suspended, surface, and wall mount applications, the EDGE MINI delivers direct or indirect light distributions. For direct/indirect lighting, utilize the EDGE 1 family with matching fixture width and lensing options.

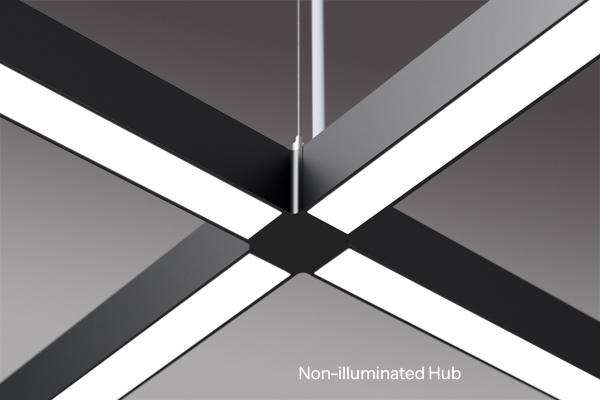

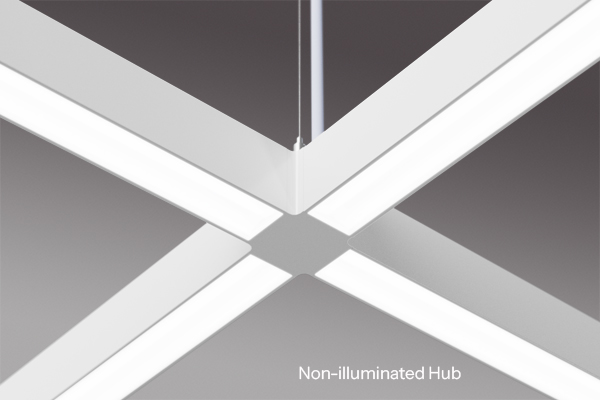

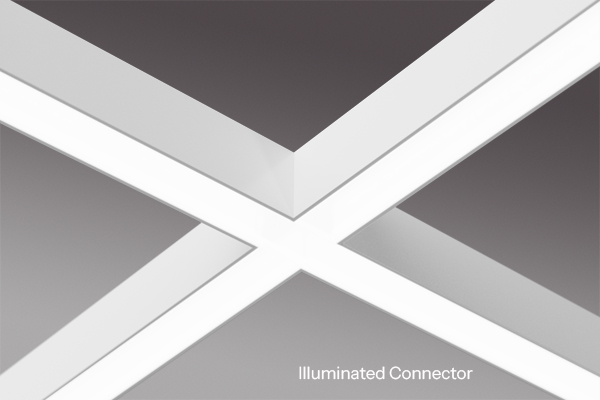

The EDGE MINI provides timeless lines of light, whether in individual fixtures or continuous rows. Pinnacle's signature co-extruded lens and standard corners, X’s, and T’s ensure uninterrupted and precisely controlled light.
This product is available with Standard Modifications. See the Spec Sheet for specific options and more information.
-
Small, integral driver option for quick, easy installation.
-
6063-T6 Extruded aluminum housing. Highly reflective white painted steel reflector.
-
5-year limited warranty covers LED, driver and fixture.
-
ETL listed conforming to UL 1598 in US and CSA 250 in Canada.
-
Approved for dry/damp location unless otherwise noted.
-
Maximum fixture weight is 10 lbs. per 4 ft fixture.
-
Buy American Act compliant.
-
